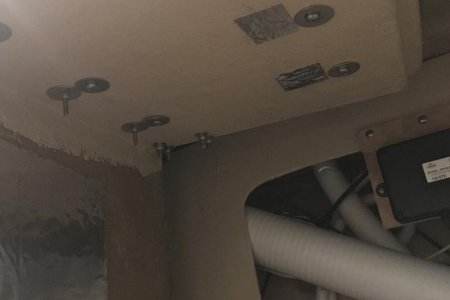

View from Refer Cavity.

View from Refer Cavity.

  • Media owner az9133bm
  • Date added Apr 17, 2019

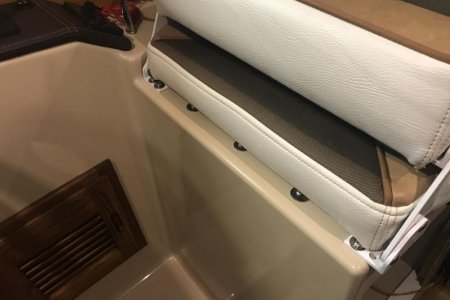

Job Done.

Job Done.

  • Media owner az9133bm
  • Date added Apr 17, 2019

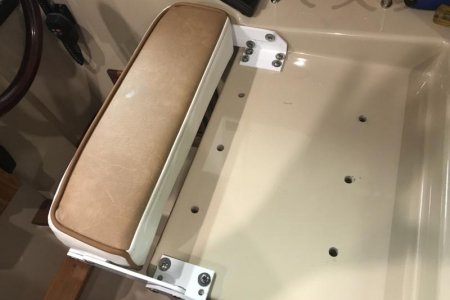

Ready to Reinstall Captain's Chair.

Ready to Reinstall Captain's Chair.

  • Media owner az9133bm
  • Date added Apr 17, 2019

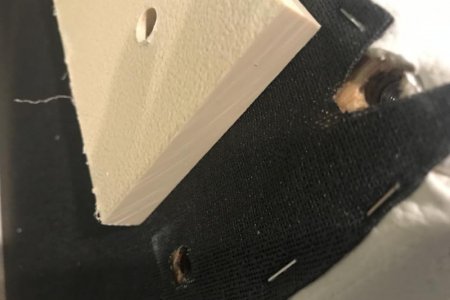

Weakest Link.

Weakest Link.

  • Media owner az9133bm
  • Date added Apr 17, 2019

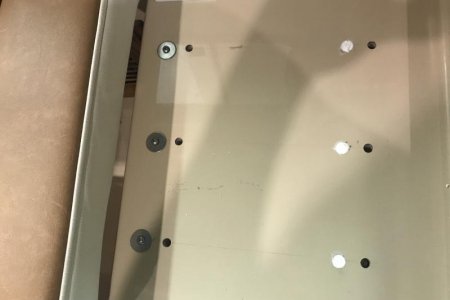

Detail

Detail

  • Media owner az9133bm
  • Date added Apr 17, 2019

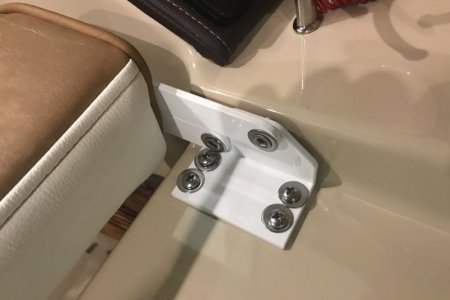

Flip-Up Bolted Firmly

Flip-Up Bolted Firmly

  • Media owner az9133bm
  • Date added Apr 17, 2019
az9133bm

Strengthening the Flip-Up Bucket

  • Items 6
  • Album owner az9133bm
  • Date created
The Captain's chair base is plywood. The hinging seat booster is attached under the chair to the plywood using four threaded inserts into the plywood. Given the leverage and force of a person sitting on this attachment method, it seems bound to loosen and fail. I'm 6'4" 240# and never felt comfortable with my mass bouncing up the bay on four little machine screws set in marginal plywood. Remove chair, bolt flip-up directly to fiberglass frame, move whole assembly aft 1", seal factory holes, and re-install chair.
