Garmin autopilot check valves

[bchristie]

2013 Cutwater 28: Can anyone provide a detailed instruction on how to install the Garmin "check valve kit" into the steering system? I have the five port manifold on the 1.2L autopilot pump. Also this is a two steering station configuration; forward and aft helm positions. Thanks for any help with this project.



[Ralf H]

Hi there,

This should help:

https://www.tugnuts.com/threads/check-valve-kit-installation-instructions.19136/

Let us know.

Cheers!

Ralf



[summer wind]

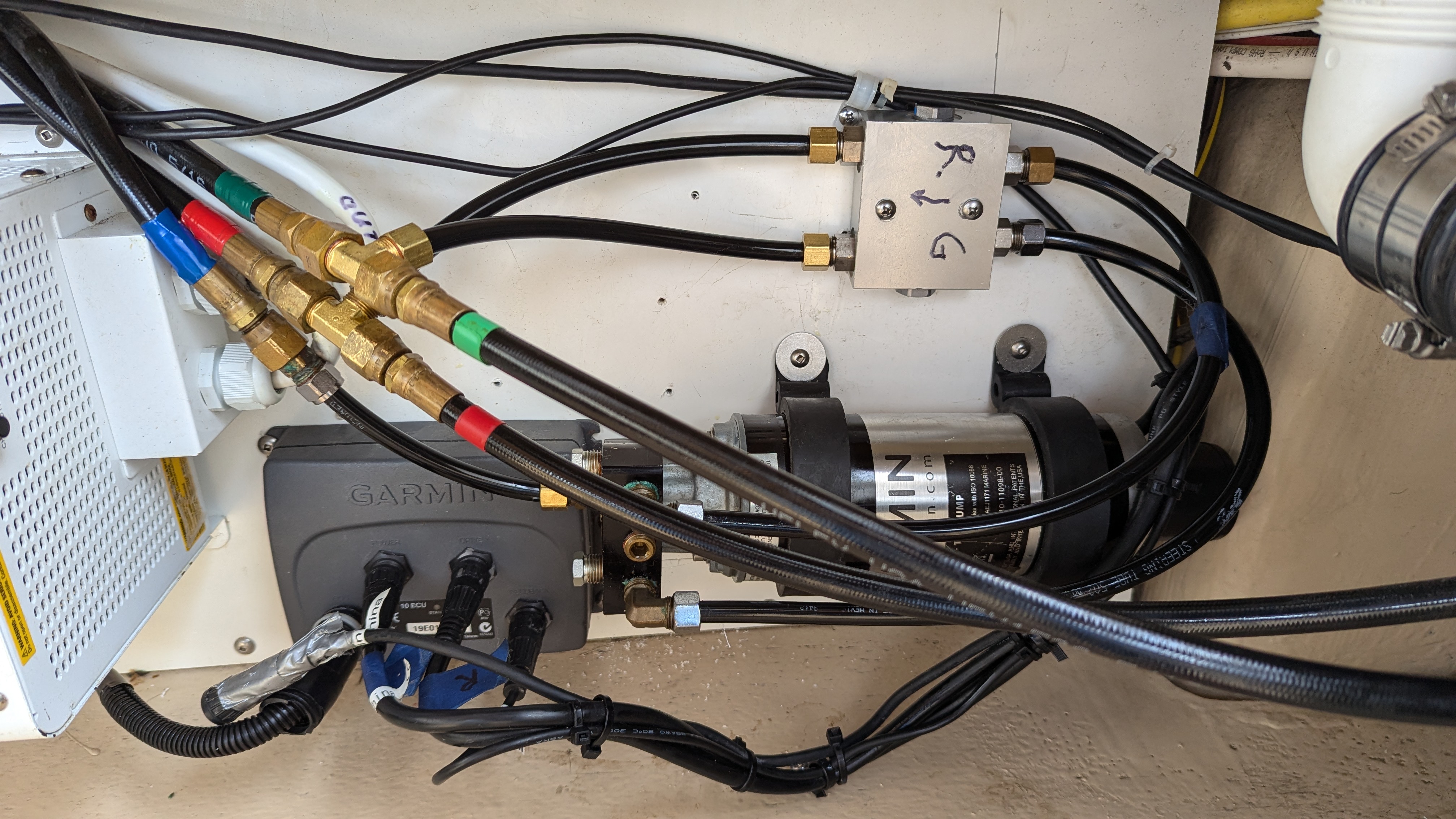

This is what I recently completed



[bchristie]

This is what I recently completed View attachment 23515

Nice work! Thank you for sharing. How is your steering now after the check valve installation?



[summer wind]

Much better, no more slippage when turning the wheel. Wheel stops when rudder is fully turned.
