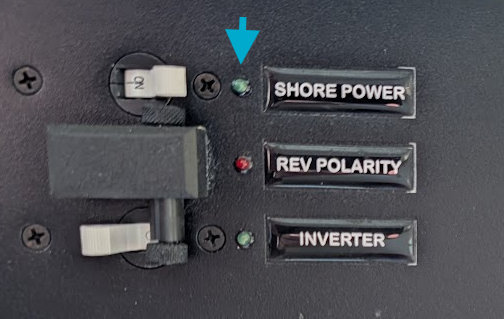

I've been trying to troubleshoot the AC panel on our (new to us) R-23 (FMLT2309F920). The shore power input breaker does not have a green led light, but seems to behave normally otherwise. The voltage is normal at the outlets (120) and the ground fault sensing module is happy (green light there). AC devices work correctly and the red LED's next to each breaker light up when the shore breaker is on. If I disconnect from shore power and enable the inverter it has a green light.
Is there any kind of logic behind the shore power green LED, or does it just light whenever power is present? I'm trying to determine if it's just a bad led/loose connection, or if there's genuinely some fault preventing it from lighting. Thanks in advance for any guidance you can provide.
Is there any kind of logic behind the shore power green LED, or does it just light whenever power is present? I'm trying to determine if it's just a bad led/loose connection, or if there's genuinely some fault preventing it from lighting. Thanks in advance for any guidance you can provide.
